2-port, 3-port and 4-port adapters connecting MDC connectors to MDC connectors or MDC Jr. connectors. The 2-port and 3-port adapters are designed to fit through the same panel cutout defined for duplex LC adapters, allowing an instant 2x or 3x of the current module/panel connector density by simply removing the LC duplex adapters and installing the MDC adapters.
MDC Connector Solutions
ELiMENT™ MDC Connector
Fujikura’s ELiMENT™ MDC connector licensed from US Conec is a Very Small Form Factor (VSFF) duplex optical connector designed for termination of multi-mode and singlemode fiber cables up to 2.0mm in diameter. The MDC connector is manufactured with proven 1.25mm ferrule technology used in industry standard LC optical connectors. Individual connector access in the most extremely dense connector environments is easily accomplished using the revolutionary DirectConec™ push-pull boot technology.
• 3x fiber cabling density over LC connectors, providing 216 duplex connectors (432 fibers) within 1 RU
• DirectConec™ push-pull boot for effortless connector insertion and extraction
• Simple polarity reversal with no exposed fibers
• Meets IEC Attenuation Grade B random mating requirements (0.12 dB mean, 0.25 dB maximum for ≥ 97% of the connectors)
• Telcordia GR-326 and TIA-568 compliant
• Designed for cables up to 2.0mm OD
• Multi-mode, Singlemode and Singlemode APC available
New Applications Require a Reduced Format Connector
Increasing connector density at the module/panel minimizes required hardware, leading to reduced capital and operational expense. Currently, a one Rack Unit (RU) housing is limited to 144 fibers using LC Duplex connectors and adapters. The smaller MDC connector increases the connector density by 3x, providing up to 432 fibers in the same 1 RU space.
Multiple emerging transceiver Multi-Source Agreements (MSAs) have defined port breakout architectures that require a duplex optical connector with a smaller footprint than the LC connector. The reduced size of the MDC connector will allow a single array transceiver to accept multiple MDC patch cables which are individually accessible directly at the transceiver interface. The new format will support four individual MDC cables in a QSFP footprint and two individual MDC cables in an SFP footprint.
Carrier Grade Performance
Although the MDC connector is almost half the size of an LC connector with twice the number of ferrules, it’s rugged housing, high-precision molding and engagement length allow it to exceed the same Telcordia GR-326 requirements as the LC connector, including the extremely demanding Proof and TWAL tests.
MDC APC Connectors
MDC APC connectors are available for high density duplex connector applications requiring a very low reflectance. The unique opposing angled ferrule connector design allows for simple and effortless polarity reversal in the event the system polarity is not as expected.
Maintaining Duplex Connector Accessibility
with DirectConec™ Push-Pull Technology
MDC connectors with DirectConec™ push-pull boot technology allows installation experts to easily insert and extract the connector in tighter, more confined spaces without affecting neighboring connectors. The flexible boot maintains proper bend radius for cable routing and will not buckle during connector insertion and extraction.
Capacity Increased by 3x Using MDC Connectors and Adapters
Quick and Simple Polarity Reversal
The polarity reversal of the MDC connector is effortless and does not expose or twist delicate fibers during the process. To change polarity, pull the boot from the connector housing, rotate the boot 180 degrees, and re- assemble the boot assembly back onto the connector housing. Polarity marks on the top and side of the connector and the MDC logo provide notification of reversed connector polarity.
Polarity Reversal Process:
housing from boot
Re-attach boot to connector housing
Ever-Increasing MDC Ecosystem
US Conec partners with industry leading vendors to develop components and equipment necessary to improve the installer and end-user experience with the following solutions:
• Multiple adapter variants
• Aggregation solutions
• Polishing equipment
• Test equipment
• Inspection scopes
Variety of Adapters

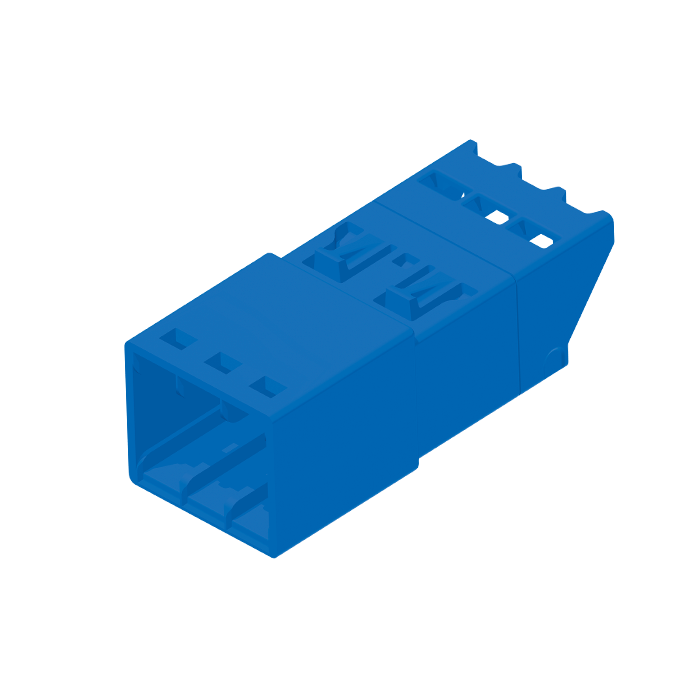

MDC 2-Port Adapter
MDC 3-Port Adapter

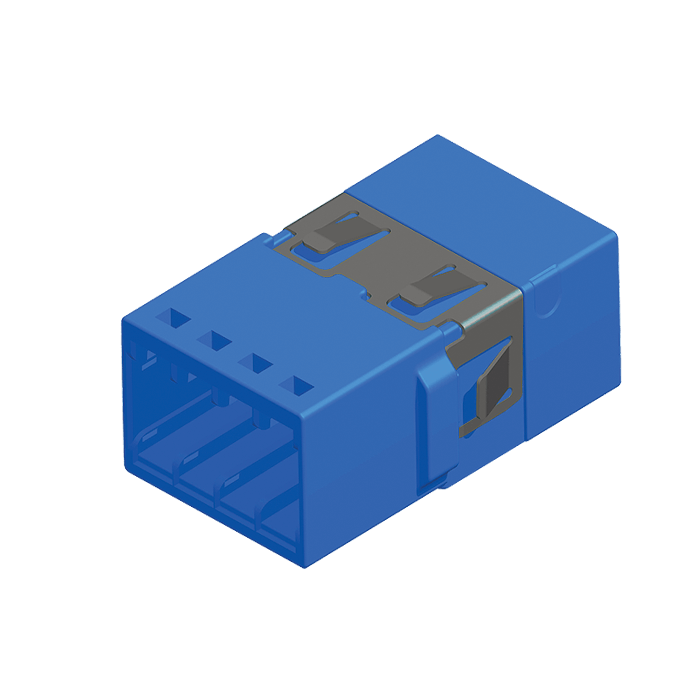

MDC 4-Port Adapter
MDC 4-Port Adapter Aligned Key- MDC/MDC
MDC 4-Port Adapter Opposed Key- MDC/MDC

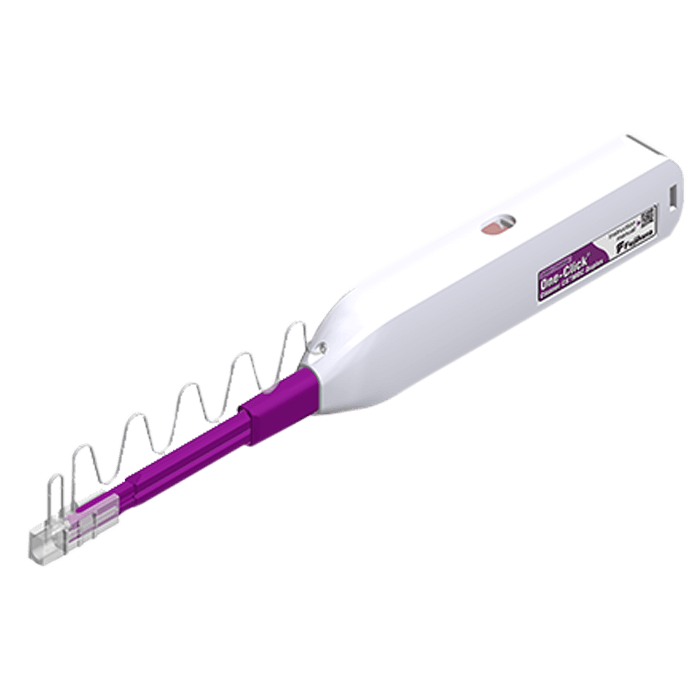

MDC Connector Cleaner
The new MDC cleaning tool uses the proven and reliable push technology pioneered by One-Click™ brand cleaners to allow swift and efficient cleaning of MDC dual ferrules with one actuation. The MDC cleaning tool features dual precision cleaning nozzles for pre- installed connectors in a panel or module adapter and a tethered adapter for accessible connectors.

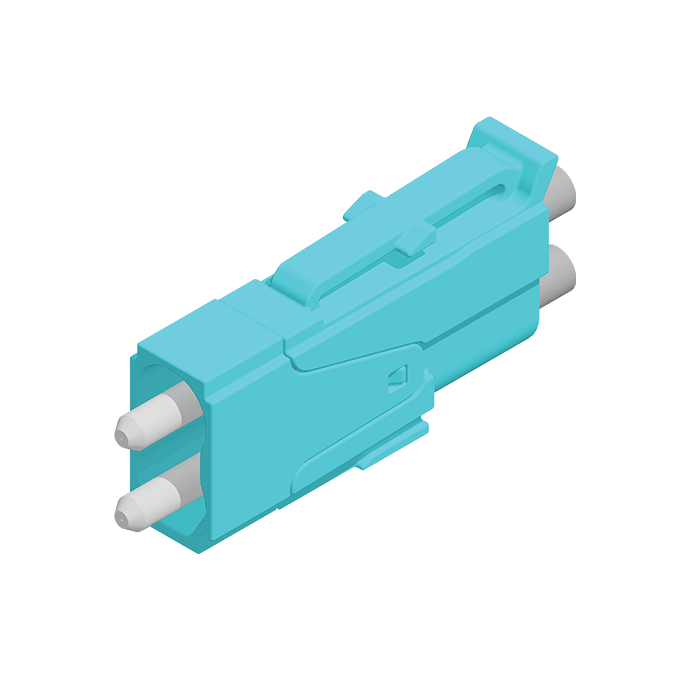

Optimized for breakouts and On Board Optic architectures, the MDC Jr. connector brings all the functionality and testability of a connector while minimizing valuable space consumption behind the panel.
*DirectConec™ and ELiMENT™ are trademarks of US Conec Ltd. One-Click™ is a trademark of Fujikura Ltd.
