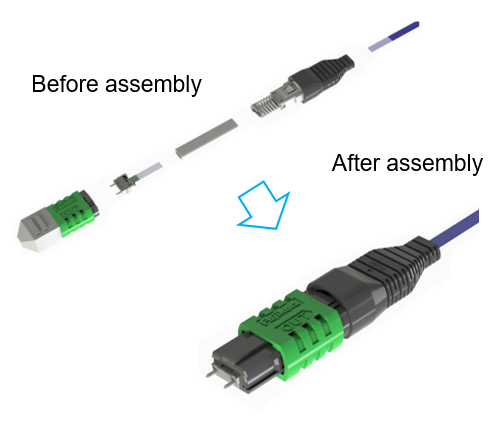

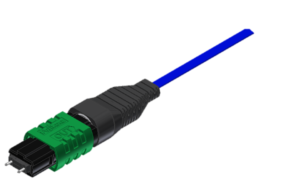

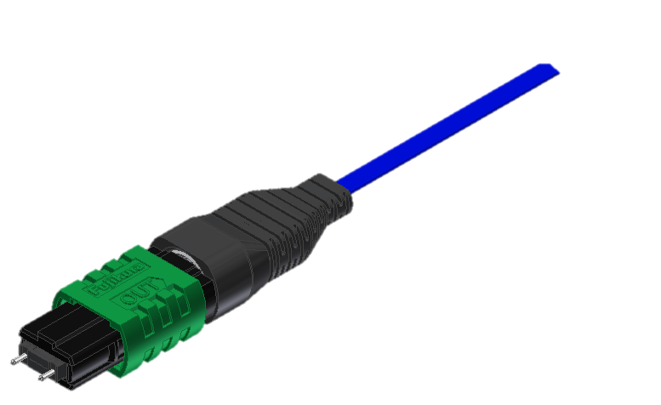

FuseConnect™ for MPO

FuseConnect™ for MPO is factory pre-polished and could be terminated easily. Similar to the conventional single-core type of Fuse Connector in the field

Download Brochure

Feature
・Field installable MPO connector using fusion splicer
・No epoxy, No polishing
・Heat shrink sleeve splice protector
・Included boots for 3mm round cord and flat ribbon fiber in each pack
・Ribbonizing tool (RT-02) for single fiber is available as an option

Specifications

Applicable Fiber/Cable	– 12c ribbon fiber, 0.25mm fiber – 3mm code
Connector	MPO (12c)
Fiber	SM^*1	Low Loss SM^*1	MM(OM1)^*2	MM(OM4)^*3
Polishing	APC		PC
Housing Color	Green	Yellow	Beige	Aqua
Insertion Loss(dB)^*4	≦0.75	≦0.35	≦0.35
Return Loss(dB)^*4	≧65	≧65	–
Remark	6pcs packing unit

*1 : Mode field diameter 8.6 um. SM(Mode field diameter : 9.2 um) type is available,
*2 : GI62.5/125, IEC60793-2-10A1b, *3 : GI50/125, IEC60793-2-10A1a.3,
*4 : with reference connector, SM@1310, 1550nm, MM@850, 1310nm

Ordering information

Type	Polishing	Male (Connector with guide pin)	Female (Connector without guide pin)
SM	APC	FUSECONNECT-MPO-S-MALE-SM15-6	FUSECONNECT-MPO-S-FEMALE-SM15-6
Low Loss SM	APC	FUSECONNECT-MPO-S-MALE-LLSM15-6	FUSECONNECT-MPO-S-FEMALE-LLSM15-6
MM(OM1)	PC	FUSECONNECT-MPO-S-MALE-GI6-6	FUSECONNECT-MPO-S-FEMALE-GI6-6
MM(OM4)	PC	FUSECONNECT-MPO-S-MALE-OM4-6	FUSECONNECT-MPO-S-FEMALE-OM4-6
